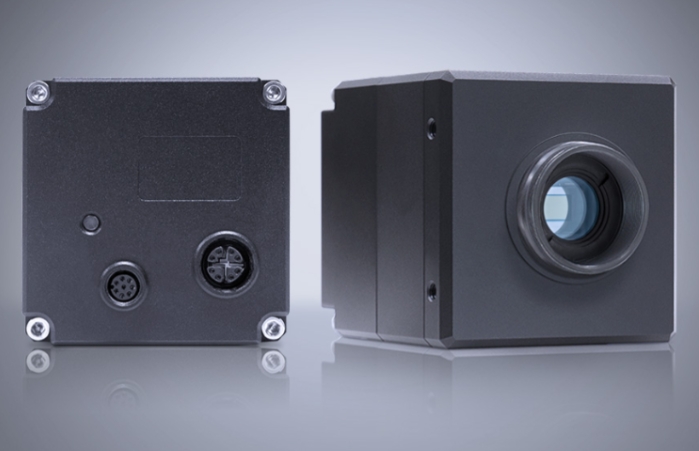

LUCID ATP013S-WC 工业相机
| 传感器特性 | |
|---|---|
| 名称 | Sony IMX990 CMOS |
| 快门 | Global |
| 靶面尺寸 | 8.2 mm (Type 1/2″) |
| 分辨率 | 1280 x 1024 px, 1.3 MP |
| 像元尺寸 | 5.0 µm (H) x 5.0 µm (V) |
| 帧率 | 84.9 FPS (94.4 FPS) @ 1.3 MP (8 Bit ADC mode) 84.9 FPS (94.4 FPS) @ 1.3 MP (10 Bit ADC mode) 71 FPS (71 FPS) @ 1.3 MP (12 Bit ADC mode) |
| 感光范围 | 400nm到1700nm（见EMVA1288表格） |
| 物理特性 | |
|---|---|
| 尺寸 | 60 x 60 x 65 mm |
| 镜头接口 | C-Mount |
| 重量 | 435 g |
| Ingress Protection | IP67 (For IP67 protection Atlas must be used with IP67 lens tube and cables) |
| 接口和电源信息 | |
|---|---|
| 数据接口 | 1000BASE-T, 100BASE-TX M12, PoE+ |
| 数字I/O | 8 pin M8 connector |
| 路光耦隔离I/O | 1 input (2.5V-24V and 10.5V-24V), 1 output |
| 路双向可配置非隔离I/O | 2 bi-directional |
| 功率要求 | PoE+ (IEEE 802.3at) or 18-24 V through GPIO |
| 功耗 | <12W via PoE+, 11.5W when powered externally |
| 成像特性 | |
|---|---|
| 缓存容量 | 380 MB |
| Image Processing | Gain, gamma, black level, white balance, LUT, pixel correction, hue, saturation |
| 数据格式 | Mono8/10/12/16 |
| Image Modes | Decimation, ROI, horizontal and vertical flip |
| ADC | 8, 10, 12 bit |
| 增益范围 | 0 dB to 48 dB analog and digital |
| 曝光时间范围 | 20.5 μs to 10 s (Normal) / 2.88 μs to 7.42 μs (Short Mode) |
| 相机功能 | |
|---|---|
| User Sets | 1 default and 2 custom user set |
| File System Size | 16 MB |
| Chunk Data | Timestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set |
| Event Data | Exposure start/end |
| Counter & Timer | 2 counters and 2 timers |
| Sequencer | Exposure time, gain |
| Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| 标准和认证 | |
|---|---|
| 制冷能力 | 温度达30°C 环境温度可达45°C |
| 兼容 | GigE Vision v2.0 |
| 认证 | CE, FCC, RoHS, REACH, WEEE |
| 存储温度 | -30 to 60°C |
| 工作温度 | -20 to 55°C |
| 湿度 | Operating: 20% ~ 80%, relative, non-condensing |
| 冲击和振动标准 | DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6 |
| 工业EMC抗扰度 | DIN EN 61000-6-2 |
| 保修 | 3 year |
